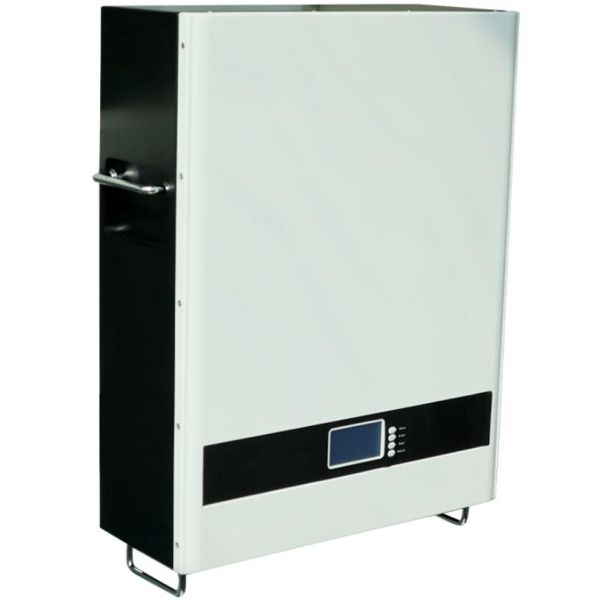

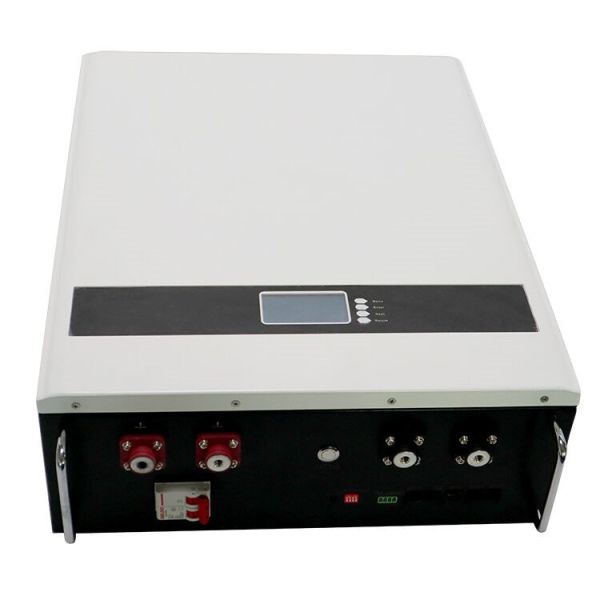

Home Solar Energy Storage 5KWh Wall-Mounted LiFePO4 Battery
48V Solar Energy Storage Battery - 5KWh Household Lithium Iron Phosphate Battery Pack
This 48V 100AH LifePO4 battery provides 5120WH of reliable power for home solar energy storage systems, featuring wall-mounted or cabinet installation options.
| Nominal Voltage | 48V (51.2V) |
| Nominal Capacity | 100AH |
| Capacity @20A | 5HR |
| Energy | 5120Wh |
| Resistance | ≤20mΩ |
| Efficiency | 99% |
| Self Discharge | ＜ 3% per month |
| Dimensions (L*W*H) | 550*350*200mm |
| Weight | 48KG |
| Terminal Type | Anderson |
| Case Material | Metal |
| Enclosure Protection | IP44 |
| Discharge Temperature | -20ºC ~ 60ºC |
| Charge Temperature | 0ºC ~ 45ºC |
| Storage Temperature | -20ºC to 40ºC |
| BMS High Temperature | 80ºC |
| Reconnect Temperature | 50ºC |
Frequently Asked Questions
Can we put different LiFePO4 battery packs in parallel or series by ourselves?
Yes, batteries can be connected in parallel or series by customers. Important considerations:
- Ensure all batteries have the same voltage before parallel connection
- Charge batteries to the same rate if voltages differ
- Avoid connecting discharged and undischarged batteries in parallel
- Inform us of total capacity for series connections so we can provide suitable BMS
- Non-professionals should avoid handling battery connections due to safety risks
Does your battery pack include BMS? Can we use it for cars?
Yes, our battery packs include BMS. They are suitable for low-speed vehicles or auxiliary power in standard cars, but not for direct use in standard vehicles which require more complex BMS design.
Other Popular LiFePO4 Battery Packs
| Voltage |
Typical Capacity |
Charge |
Discharge |
Dimensions (mm) |
Weight (Kg) |
| 12V | 8AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.25 |
| 12V | 10AH | 0.2C-2C | 0.2C-2C | 150*92*65 | 1.6 |
| 12V | 12AH | 0.2C-2C | 0.2C-2C | 151*99*95 | 1.8 |
| 12V | 50AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 9.5 |
| 12V | 100AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 19 |
| 12V | 200AH | 0.2C-2C | 0.2C-2C | 525*240*215 | 30 |
| 24V | 10AH | 0.2C-2C | 0.2C-2C | 181*77*175 | 3 |
| 24V | 30AH | 0.2C-2C | 0.2C-2C | 195*165*175 | 12 |
| 24V | 50AH | 0.2C-2C | 0.2C-2C | 330*175*220 | 18 |
| 24V | 100AH | 0.2C-2C | 0.2C-2C | 485*175*240 | 32 |
| 48V | 10AH | 0.2C-2C | 0.2C-2C | 223*106*175 | 7.5 |
| 48V | 50AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 33 |
| 48V | 75AH | 0.2C-2C | 0.2C-2C | 522*237*215 | 42 |
| 48V | 100AH | 0.2C-2C | 0.2C-2C | 350*540*160 | 52 |
LiFePO4 Rechargeable Battery Applications
Why Choose Our Battery Solutions
Advanced Technology
- All-weather applicability (-30~60℃)
- Highly safe battery design with latest electrolyte and separator technology
- Full coverage of battery varieties: Lithium ion cylindrical, lithium polymer, LiFePO4, solar energy storage packs, square aluminum shell, primary batteries
Research & Development
Experienced R&D team with over 60 engineers and advanced equipment supporting OEM and ODM requirements.
Quality Control
Certifications
CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified.
Manufacturing Excellence
Shenzhen Gold Power Energy Co., Ltd is a leading battery supplier in China, providing various batteries including Li polymer, Lithium ion, LiFePO4, and customized battery packs since 2001.
