Deep Cycle 3.2V 100Ah LiFePO4 Prismatic Battery Cell with 2000 Cycle Life for Solar Electronic Vehicles

  • 1
  • 2
  • 3

Model Number : LFP100Ah

Certification : UN38.3, MSDS, IEC62133, RoHS

Place of Origin : China

MOQ : 100pieces

Payment Terms : T/T

Supply Ability : 10'000Pieces daily

Delivery Time : within 10days

Packaging Details : Bulk packing

Nominal Voltage : 3.2V

Typical Capacity : 100Ah

Cycle Life : 2000 times

Weight : 2.1kg

Dimensions : 27*175*205mm

Impedance Resistance : ≤5mΩ

Contact Now

Deep Cycle Prismatic 3.2V 100Ah LiFePO4 Battery Cell
High-performance 3.2V prismatic LiFePO4 battery cell designed for solar applications and electronic vehicles, offering exceptional cycle life and reliability.
Technical Specifications
Nominal Voltage 3.2V
Nominal Capacity 100Ah (other capacities available: 20Ah/25Ah/30Ah/50Ah/80Ah/100Ah/120Ah/200Ah/270Ah/280Ah)
Discharge Cut-off 2.5V
Charge Cut-off 3.65V
Charge Current 50A
Discharge Current 100A
Peak Discharge Current 300A
Impedance Resistance ≤ 5mΩ
Dimension 27 × 175 × 205mm
Weight 2.1kg
Discharge Temperature Range -20°C ~ 60°C (-4°F ~ 140°F)
Charge Temperature Range 0°C ~ 45°C (32°F ~ 113°F)
Charge Method CC/CV
Cycle Life Over 2000 cycles

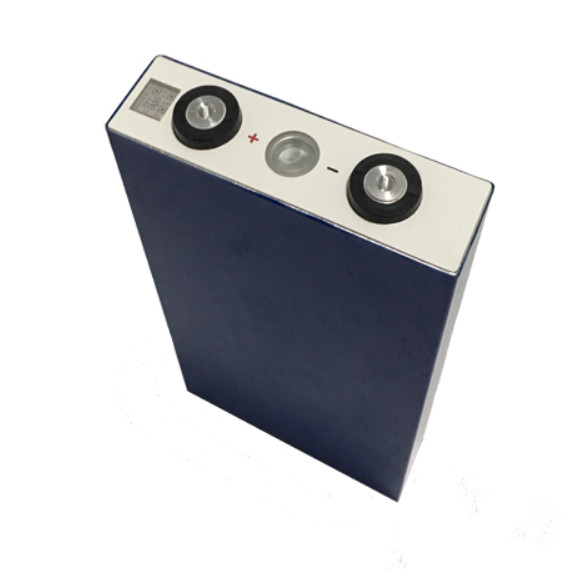

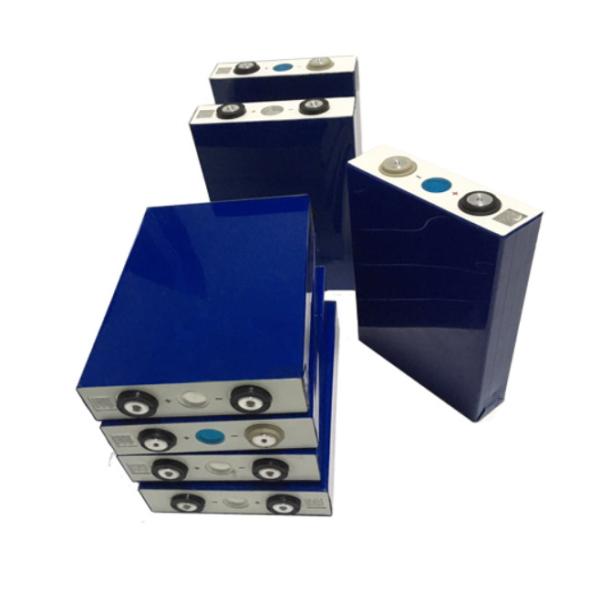

Product Images
Deep Cycle 3.2V 100Ah LiFePO4 Prismatic Battery Cell with 2000 Cycle Life for Solar Electronic Vehicles Deep Cycle 3.2V 100Ah LiFePO4 Prismatic Battery Cell with 2000 Cycle Life for Solar Electronic Vehicles
LiFePO4 Battery Advantages
Deep Cycle 3.2V 100Ah LiFePO4 Prismatic Battery Cell with 2000 Cycle Life for Solar Electronic Vehicles

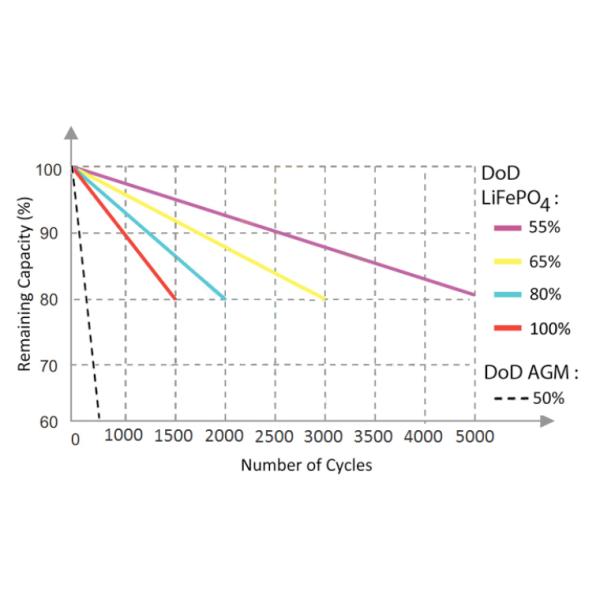

Discharge Cycle Life
Deep Cycle 3.2V 100Ah LiFePO4 Prismatic Battery Cell with 2000 Cycle Life for Solar Electronic Vehicles
Frequently Asked Questions
Can we put different LiFePO4 battery packs in parallel or series ourselves?
Yes, batteries can be connected in parallel or series by customers. However, please note these important tips:
  • Ensure all batteries have the same voltage before connecting in parallel
  • Do not mix discharged and undischarged batteries in parallel
  • Inform us of your target capacity for series connections so we can recommend suitable BMS
  • If you're not experienced with battery connections, we recommend professional assistance
Can we put different LiFePO4 battery packs in series ourselves?
We recommend purchasing higher voltage batteries directly from us. Self-series connections may reduce battery pack cycle life.
Does your battery pack include BMS? Can we use it for cars?
Yes, our battery packs include BMS. They are suitable for low-speed vehicles or as auxiliary power for standard cars. Not recommended for direct use in standard vehicles without specialized BMS design.
What is your warranty?
We offer a 2-year warranty on all battery packs. Our LiFePO4 batteries are guaranteed for at least 2000 cycles at 80% depth of discharge, maintaining approximately 60% capacity afterward. This typically provides 5+ years of service with daily charging cycles.
Other LiFePO4 Cylindrical Battery Cells
Model No. Nominal Voltage Typical Capacity Size Charge Rate Discharge Rate Weight(g) Cycle Life (80% DOD)
IFR104403.2V200mAh10.3×44.20.2-0.5C0.2-3C7≥2000
IFR144303.2V400mAh14.2×430.2-0.5C0.2-3C13≥2000
IFR145003.2V600mAh14.2×50.20.2-0.5C0.2-3C18≥2000
IFR163403.2V400mAh16.2×34.20.2-0.5C0.2-3C13≥2000
IFR185003.2V1000mAh18.1×50.20.2-0.5C0.2-3C34≥2000
IFR186503.2V1500mAh18.5×65.30.2-0.5C0.2-3C42≥2000
IFR186503.2V1800mAh18.5×65.30.2-0.5C0.2-3C62≥2000
IFR226503.2V1800mAh22.5×65.30.2-0.5C0.2-3C64≥2000
IFR266503.2V3400mAh26.5×65.30.2-0.5C0.2-3C85≥2000
IFR266503.2V3600mAh26.5×65.30.2-0.5C0.2-3C90≥2000
IFR266503.2V3600mAh26.5×65.30.2-0.5C0.2-3C90≥2000
IFR327003.2V6000mAh32.5×65.30.2-0.5C0.2-3C150≥2000
Why Choose Us
Technology
  • All-weather applicability (-30~60℃)
  • Highly safe battery design with advanced electrolyte and separator technology
  • Full coverage of battery varieties including cylindrical, polymer, LiFePO4, and energy storage systems
Research & Development
Experienced R&D team with over 60 engineers and advanced equipment supporting OEM and ODM requirements.
Deep Cycle 3.2V 100Ah LiFePO4 Prismatic Battery Cell with 2000 Cycle Life for Solar Electronic Vehicles
Quality Control
Deep Cycle 3.2V 100Ah LiFePO4 Prismatic Battery Cell with 2000 Cycle Life for Solar Electronic Vehicles
Certifications
CE, RoHS, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certified
Deep Cycle 3.2V 100Ah LiFePO4 Prismatic Battery Cell with 2000 Cycle Life for Solar Electronic Vehicles
Factory Overview
Shenzhen Gold Power Energy Co., Ltd is a leading battery supplier in China, providing various batteries including Li polymer, Lithium ion, LiFePO4, and customized battery packs since 2001.
Deep Cycle 3.2V 100Ah LiFePO4 Prismatic Battery Cell with 2000 Cycle Life for Solar Electronic Vehicles
