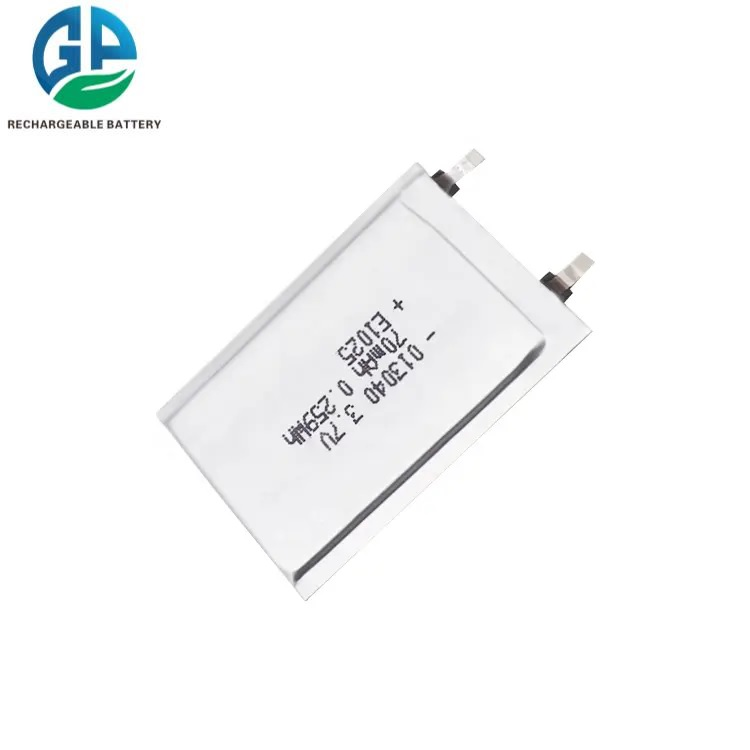

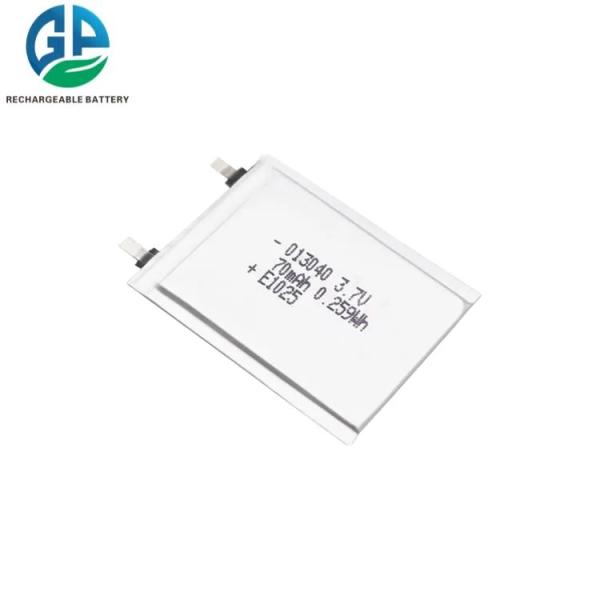

Small 3.7V 70mAh LP013040 Lithium Polymer Battery Pack for Digital Devices

Model Number : LP013040

Certification : UN38.3, MSDS, IEC62133, RoHS

Place of Origin : China

MOQ : 2000pieces

Payment Terms : T/T

Supply Ability : 50'000Pieces daily

Delivery Time : within 15days

Packaging Details : Bulk packing

Capacity : 120mAh

Cycle life : 500times

Operating temperature : -20°C~+60°C

Voltage : 3.7V

Weight : 5g

Size : 5*12*27.5mm

Contact Now

Small 3.7V Li Polymer Power Bank 013040 70mAh
Product Overview

Small Battery LP013040 Lithium Polymer Battery Pack 3.7V 70mAh Lipo Battery With Connector

Specification Details
Type Lithium polymer battery
Nominal voltage 3.7V
Nominal Capacity 70mAh
Model LP013040
Max. charge current 1.0C
Max. discharge current 1.0C
Charge current Standard Charging: 0.5C
Rapid charge: 1.0C
Standard Charging method 0.5C CC(constant current)charge to 4.2V, then CV(constant voltage 4.2V)charge till charge current decline to ≤0.05C
Charging time Standard Charging: 3.0 hours(Ref.)
Rapid charge: 2 hours(Ref.)
Discharge cut-off voltage 2.45V~3.0V
Operating temperature -20°C~+60°C
Storage temperature 25°C
Certification CE, ROHS, IEC, KC, CL, UN38.3, MSDS, BIS
Application PDA, Tablet PC, Ebook, MID, Mine Lamp, MP3, MP4, MP5, Power Bank And So On.
Common Applications
  • GPS, POS Terminal, Wireless headset, Communication Tool, Heating Blanket Smart Phone
  • Learning Tools, Medical Device, Personal Care Scanner Vaccum Packaging, Lamp, Monitor
  • Portable DVD, Smart Home, Tablet PC, Pulse Monitoring, Mobile, Power Bank, Camera
Additional Battery Models

Shenzhen Gold Power Energy offers over 1000 models of lithium polymer batteries with capacity range from 20mAh to 5000mAh to meet various application requirements.

Model Cell Dimension With PCM Dimension Capacity
302025 3.0*20*25mm 3.2*21*27.5mm 3.7V 100mAh
302530 3.0*25*30mm 3.2*26*32.5mm 3.7V 180mAh
401824 4.0*18*24mm 4.2*19*26.5mm 3.7V 180mAh
402525 4.0*25*25mm 4.2*26*27.5mm 3.7V 200mAh
483450 4.8*34*50mm 5.0*35*52.5mm 3.7V 850mAh
502030 5.0*20*30mm 5.2*21*32.5mm 3.7V 240mAh
502525 5.0*25*25mm 5.2*26*27.5mm 3.7V 180mAh
503030 5.0*30*30mm 5.2*31*32.5mm 3.7V 430mAh
523450 5.2*34*50mm 5.4*35*52.5mm 3.7V 1000mAh
553444 5.5*34*44mm 5.7*35*46.5mm 3.7V 850mAh
553640 5.5*36*40mm 5.7*37*42.5mm 3.7V 850mAh
553759 5.5*37*59mm 5.7*38*61.5mm 3.7V 1400mAh
602030 6.0*20*30mm 6.2*21*32.5mm 3.7V 300mAh
602240 6.0*22*40mm 6.2*23*42.5mm 3.7V 500mAh
602535 6.0*25*35mm 6.2*26*37.5mm 3.7V 500mAh
602663 6.0*26*63mm 6.2*27*65.5mm 3.7V 1000mAh
603030 6.0*30*30mm 6.2*31*32.5mm 3.7V 520mAh
603040 6.0*30*40mm 6.2*31*42.5mm 3.7V 750mAh
603048 6.0*30*48mm 6.2*31*50.5mm 3.7V 900mAh
603450 6.0*34*50mm 6.2*35*52.5mm 3.7V 1200mAh
656090 6.5*60*90mm 6.5*60*92.5mm 3.7V 5000mAh
702040 7.0*21*40mm 7.2*22*42.5mm 3.7V 500mAh
753048 7.5*30*48mm 7.7*31*50.5mm 3.7V 1200mAh
803035 8.0*30*35mm 8.2*31*37.5mm 3.7V 800mAh
855465 8.5*54*65mm 8.5*54*65mm 3.7V 4000mAh
863040 8.6*30*40mm 8.8*30*42.5mm 3.7V 1000mAh
904060 9*40*60mm 9.2*40*62.5mm 3.7V 2500mAh
883760 8.8*37*60mm 9*57*51.6mm 3.7V 2000mAh
103048 10.2*30*48mm 10.2*30*50.5mm 3.7V 1500mAh
103040 10.2*30*40mm 10.2*30*42.5mm 3.7V 1200mAh
114261 11*42*61mm 11*42*63.5mm 3.7V 3400mAh
122773 12*27*73mm 12*27*75.5mm 3.7V 2400mAh
Product Images
Small 3.7V 70mAh LP013040 Lithium Polymer Battery Pack for Digital Devices Small 3.7V 70mAh LP013040 Lithium Polymer Battery Pack for Digital Devices
Standard Packaging
Small 3.7V 70mAh LP013040 Lithium Polymer Battery Pack for Digital Devices
Frequently Asked Questions
Can I use Lithium batteries mixing with other battery types?

If different types of batteries are used together, or new batteries are used with old ones, the difference in characteristics of voltage, capacity, etc. may cause over-discharge of the battery which is exhausted first, leading to swelling, bursting or fire.

What will happen if the batteries with different capacity are packed together?

If the batteries with different capacity or new and old batteries are used together, leakage, zero voltage and so on might happen. If the batteries are rechargeable and are being charged, some batteries are overcharged and other batteries is not in full charged state. During the discharge, some batteries cannot discharge fully and other batteries might over discharge. This way, the battery will be damaged.

What are the possible reasons for zero voltage or low voltage of the battery pack?

Short circuit or open circuit of the connector or wrong connection, de-soldering or cold solder joint between the batteries and lead, wrong connection between the batteries.

What are the possible reasons if the rechargeable battery or rechargeable battery pack cannot be charged?

The battery is zero voltage or there is battery with zero voltage in the battery pack. There is wrong connection inside the battery pack. There is abnormally of electronic components and/or PCB inside the battery pack. There is failure in charger. Outer element causes the charging efficiency to be too low, such as extremely low or high temperature.

Why Choose Gold Power Energy
Technology
  • All-weather applicability (-30~60℃)
  • Highly safe battery design technology with the newest electrolyte and separator technology applied
  • Full Coverage of Battery Variety: Lithium ion Cylindrical battery, lithium polymer battery, LiFePO4 battery, Solar Energy Storage battery pack, square aluminum shell, Primary Battery, etc.
R & D

Experienced R&D team with over 60 engineers and advanced equipment for supporting OEM and ODM requirements.

Small 3.7V 70mAh LP013040 Lithium Polymer Battery Pack for Digital Devices
Quality Control
Small 3.7V 70mAh LP013040 Lithium Polymer Battery Pack for Digital Devices
Certificates

CE, RoHs, BIS, KC, CB, UL, MSDS, UN38.3, IEC61233 certificated.

Small 3.7V 70mAh LP013040 Lithium Polymer Battery Pack for Digital Devices
Factory Tour

Shenzhen Gold Power Energy Co., Ltd is one of the leading battery suppliers in China. We have started to offer various batteries including Li polymer battery, Lithium ion battery, LiFePO4 battery, and customized battery pack since 2001.

Small 3.7V 70mAh LP013040 Lithium Polymer Battery Pack for Digital Devices
